It includes Bluetooth beacons, smart terminals, LoRa gateways, and cloud application. The smart terminal scans the signals of the Bluetooth beacons deployed indoors, and sends them to the cloud for data processing through the LoRa gateway to realize the positioning of the smart terminal.
The Bluetooth beacon is deployed in the area that needs positioning, periodically sends Bluetooth broadcasts, and is powered by a button battery.
Smart Terminal
Scan the broadcast of the Bluetooth beacon, send the data to the LoRa gateway, and receive the control commands sent by the LoRa gateway to realize extended functions, etc.
LoRa Gateway
The LoRa gateway is a communication bridge between smart terminals and cloud application, and can achieve signal coverage for large areas at a lower cost.
Cloud Application

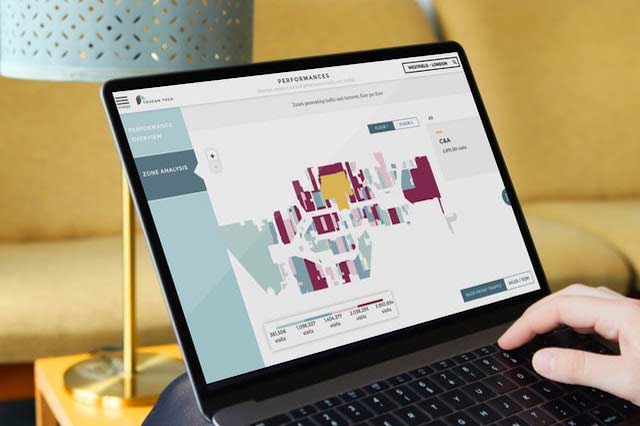

The cloud application summarizes the data sent by the LoRa gateway, and obtains the positioning information through various algorithms to realize real-time positioning, historical trajectory, electronic fence, etc.
